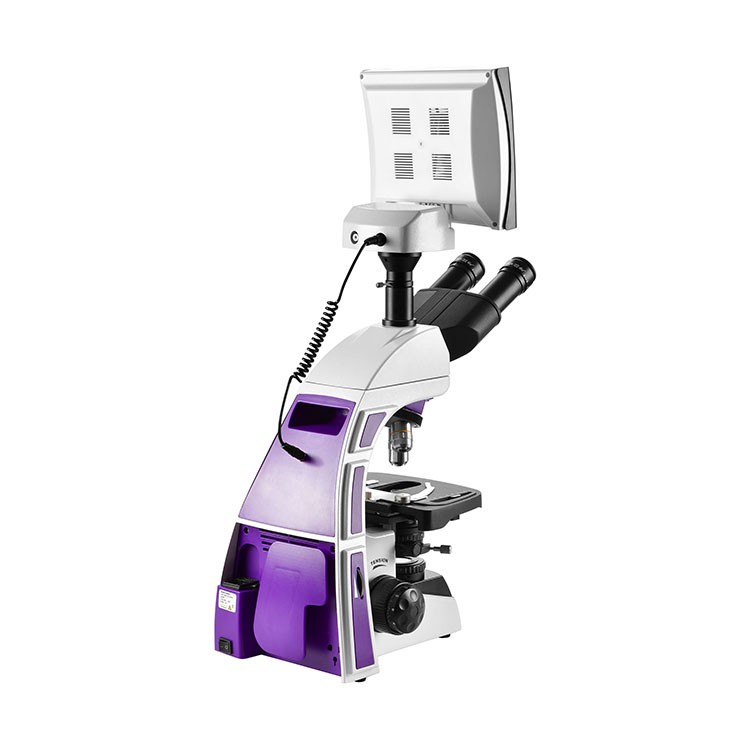

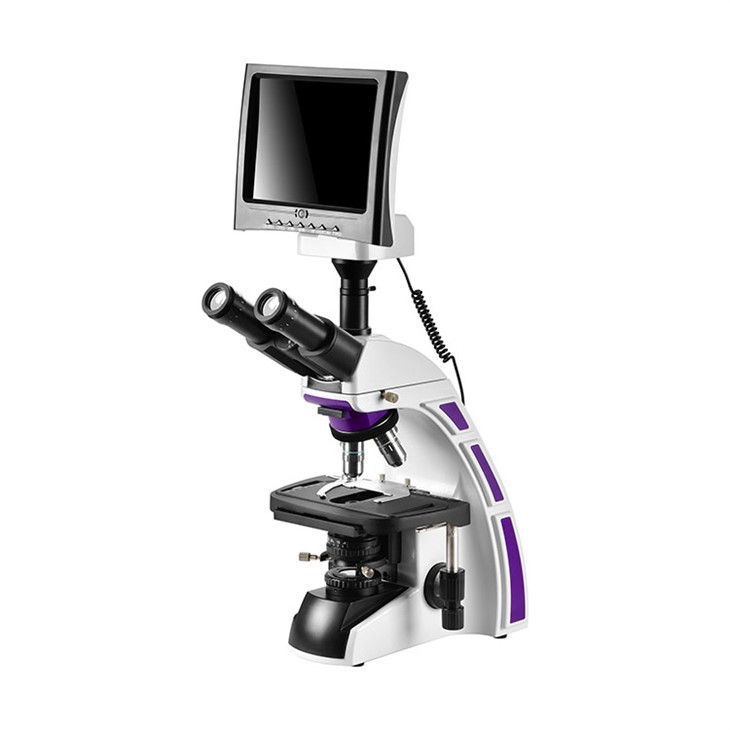

Portable Lcd Digital Microscope

The portable lcd digital microscope is a transmitted-light microscope of compact design with flexibility. Equipped with 3w/or 5w LED lamp, field diaphragm, Abbe condensers and other optical components, the standard Köhler illumination system provides uniformly bright and free-from-glare specimen illumination, which provides a high image quality with brighter and sharper resolutions for photomicrography. The Compact body is designed for flexibility which can perform various applications such as brightfield, darkfield and polarization. Trinocular microscope can be equipped with digital camera and LCD screen for photo and video documentation and image analysis.

Specification

Viewing Head	Articulated binocular or trinocular head
	30°inclined and 360°rotatable
	Interpupillary adjustment of 48mm-75mm
Eyepiece	10x eyepiece
	Both diopter adjustable
	Wide-field,22mm field of view(FN22)
	High eyepoint,with eye guard
	Various reticule eyepieces available(not included)
Condenser	Abbe condenser N.A. 1.25 (with oil immersion)
	With diaphragm position guide markings for different objectives
Nosepiece	Revolving reversed quadruple objective nosepiece accepts four objectives which are color-coded, parcentered and parfocaled.
	The nosepiece runs on ball bearings and has internal click stops so that the image remains centered after each change in magnification.
Objectives	Plan Achromat DIN 4X/0.10 160/0.17
	Plan Achromat DIN 10X/0.25 160/0.17
	Plan Achromat DIN 40XR/0.65 160/0.17
	Plan Achromat DIN 100XR/1.25 OIL 160/0.17
	Retractable 40XR and 100XR objectives equipped with resilient mounts for specimen protection.
Focusing System	Coaxial coarse and fine adjustment knobs
	37.7mm per coarse rotation
	0.1mm per fine rotation, Fine focus graduation of 1um
	Focusing range 16mm
Stage	216mmX150mm built-in double layer mechanical stage
	Travel range 55x75mm,verniers for X/Y coordinate, vernier scale can be read to 0.1mm
	Non-extending rack
	Graphite surface, rounded edges
Illumination	Kohler illumination with field diaphragm
	3w LED for optimum illumination and contrast(5w LED available but not included)
Imaging	Trinocular head 50/50 light splitting ratio
Optional Accessory Available(not included)
Phase Contrast Apparatus	Dial phase contrast apparatus
	Insert phase contrast apparatus
Dark Field Condenser	Dry darkfield condenser
	Oil-darkfield condenser
Polarizing Device
Objectives	Achromatic objectives 4X,10X,20X,40X,60X,100X
	Plan objectives 20X,60X
	Infinity Plan Achromatic objectives 4X,10X,20X,40X,60X,100X
Swing Abbe Condenser
Illumination	5W LED lamp

Packaging List

1* Storage foam box;
1* Binocular Microscope;
4*195 Objectives, 4X,10X, 40X, 100X;
1* cedar oils;
2*PL10X/22mm Eyepieces;
1* Dust Cover;
1* USB Cable;
1* power adapter;

1*8 inch LCD screen

1pcs/carton

Size:36X31X67cm
G.W:10KGS

N.W.:8KGS
