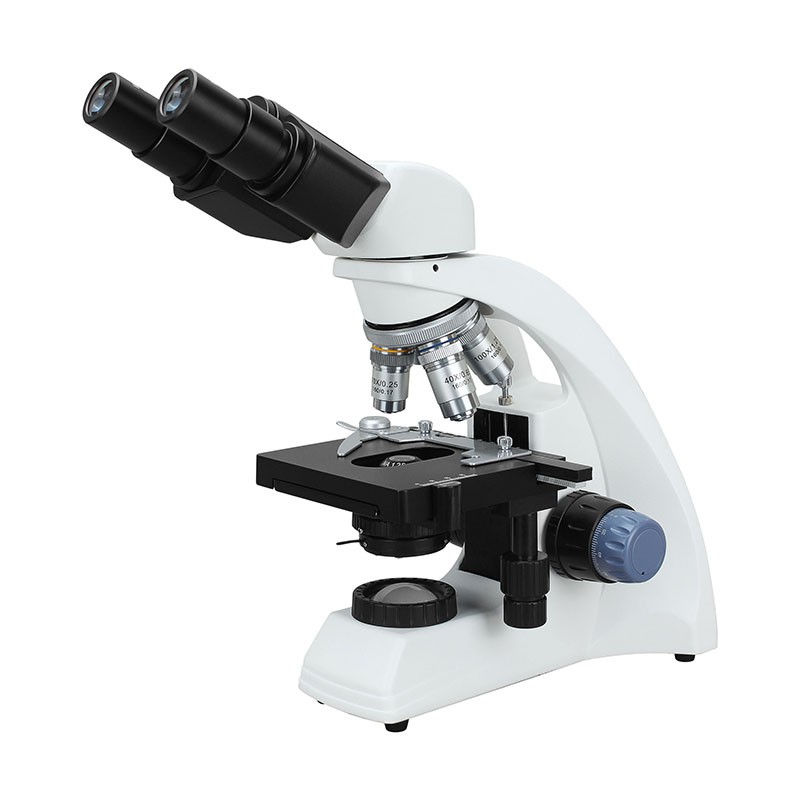

This advanced biological microscope eyepiece WF10x made by wide field optical glass, four DIN achromatic full-glass objectives(4X, 10X, 40X, 100X) and there are coaxial coarse and fine focus so that they can show you a sharp image. 6-hole iris diaphragm provide better lighting conditions. N.A=1.25 Abbe condenser and Iris diaphragm provide better lighting conditions and brighter field to illuminate specimens.
Mechanical stage with scales locks slide into place and provides precise slide manipulation along the X- and Y-axis to allow coordinates to be recorded, enabling the viewer to return to a specific location on the slide. Convenient to move and locate the small piece and prevent jitter under high magnification. Mechanical components and frame are constructed of metal for precision and durability.
All-metal body, framework and objective lens ensure the binocular microscope set stability. It’s an excellent microscope for students and hobbyists to learn sciences. All safety and environmental protection materials ensure the health of users.
This advanced biological microscope is powered by a power adapter (adapter included) or 3 AA batteries(optional) for different usage situations.( AC Input 230V or 110V, DC ouput 6V).
Specification
1. Optical System: Finite Optical System
2. Viewing Head: Seidentopf Binocular Viewing Head, Inclined at 30º , 360ºRotatable
3. Eyepiece: Wide Field Eyepiece WF10X/18mm(WF16X optional)

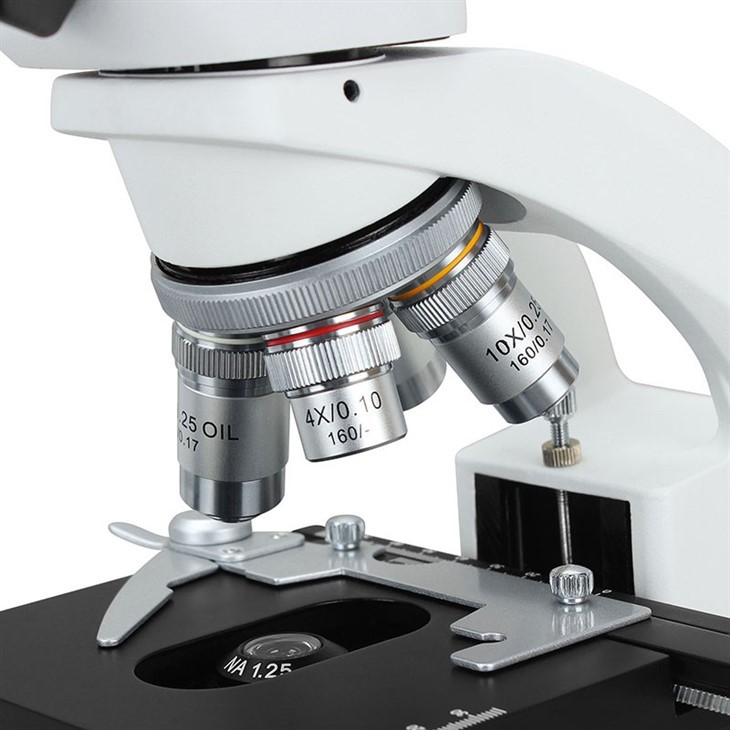

4. Objective: Finite 195 Series Achromatic Objectives 4X 10X 40Xs 100Xs(oil)
5. Nosepiece: Quadruple Nosepiece
6. Condenser: Abbe Condenser NA1.25 with Iris Diaphragm&Filter
7. Focusing System: Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke36mm
8. Stage: Double Layer Mechanical Stage 110x125mm
9. LED illumination: 3W/LED Adjustment
Question: What should be paid attention to when using a microscope?
Answer:
Proper handling: Always handle the microscope carefully and gently. Avoid touching the lenses or any other sensitive parts with your fingers.
Proper cleaning: Clean the lenses and other parts of the microscope with a soft, lint-free cloth or lens paper. Avoid using abrasive materials or harsh chemicals that may damage the lenses.
Proper storage: Store the microscope in a clean, dry place when not in use. Cover the microscope with a dust cover to protect it from dust and other contaminants.
Proper use: Follow the manufacturer's instructions for operating the microscope. Use the appropriate magnification and lighting settings for the sample being observed.
Safety precautions: Be aware of any potential hazards associated with the use of the microscope, such as exposure to chemicals or biological materials. Always use appropriate protective equipment, such as gloves and safety glasses.
