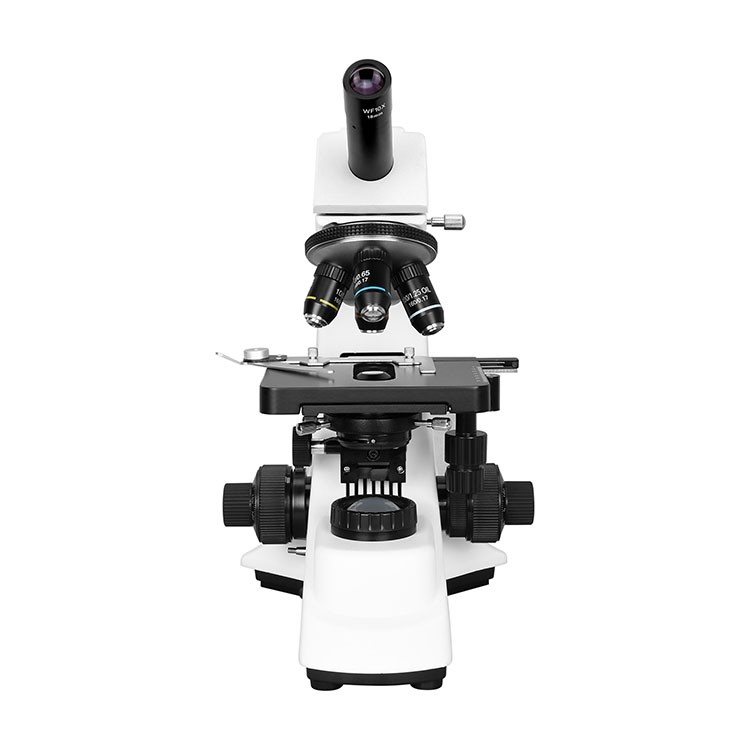

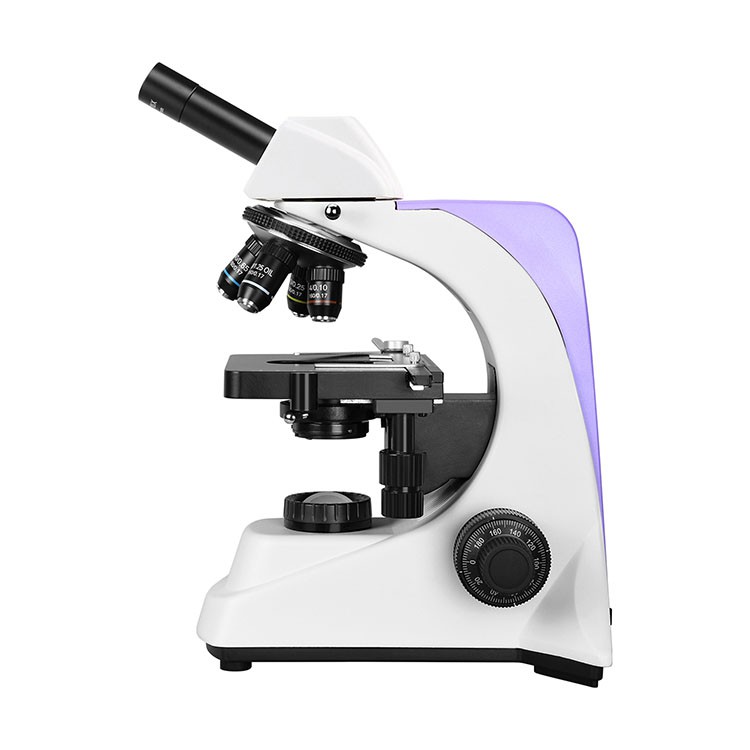

Biology Lab Microscope

1. Optical System: Finite Optical System

2. Viewing Head: Siedentopf Monocular Viewing Head, Inclined at 30º , Interpupillary 48mm-75mm

3. Eyepiece: Wide Field Eyepiece WF10X/18mm(WF16X optional)

4. Objective: Finite 195 Series Achromatic Objectives 4X 10X 40Xs 100Xs(oil)

5. Nosepiece: Outward Quadruple Nosepiece

6. Condenser: Abbe Condenser NA1.25 with Iris Diaphragm&Filter

7. Focusing System: Coaxial Coarse and Fine Adjustment, Fine Division 0.002mm, Coarse Stroke36mm

8. Stage: Double Layer Mechanical Stage 142x132mm , Moving Range75mmx50mm

9. Illumination: External Illumination, 3W/LED

Optional accessories:

Head:Binocular head or Trinocular head

Eyepiece: WF16X

Objective lens: Plan objectives (4X, 10X, 40X, 100X)

Illumination: 6V 20W halogen illumination

Siedentopf Binocular Viewing Head: This refers to the type of binocular head on the microscope. Seidentopf heads have a design where the interpupillary distance (distance between the eyepieces) can be adjusted without changing the focus. It provides a comfortable viewing experience for users.

Inclined at 30º, 360º Rotatable: The viewing head is inclined at an angle of 30 degrees, which offers ergonomic viewing for the user. Additionally, it can rotate a full 360 degrees, allowing for easy sharing of the microscope between multiple users or for comfortable positioning.

Wide Field Eyepiece WF10X/18mm: The eyepieces have a magnification factor of 10X and provide a wider field of view compared to standard eyepieces. The 18mm value refers to the diameter of the field of view visible through the eyepiece.

Finite 195 Series Achromatic Objectives: These are a set of objective lenses with different magnification powers and numerical apertures. The numbers associated with the objectives indicate their magnification (4X, 10X, 40Xs, and 100Xs) and the "s" on the 40X and 100X objectives suggests that they require immersion oil to achieve optimal imaging quality.

Quadruple Nosepiece: This refers to the revolving mechanism on the microscope that holds the objective lenses. A quadruple nosepiece can hold up to four objectives, allowing for quick and easy switching between different magnifications.

Double Layer Mechanical Stage 142x132mm, Moving Range 75mmx50mm: The mechanical stage is the platform on which the specimen is placed. The double-layer design provides stability and allows for precise movement in both the X (horizontal) and Y (vertical) directions. The dimensions provided indicate the size of the stage, and the moving range specifies the maximum distance the stage can be moved in each direction.

Abbe Condenser NA1.25 with Diaphragm: The Abbe condenser is a component below the stage that helps focus and concentrate the light onto the specimen. The numerical aperture (NA) of 1.25 indicates the condenser's ability to gather and focus light. The diaphragm allows for the adjustment of the aperture size, controlling the intensity and depth of field.

Filter: This likely refers to a filter holder or slot where filters can be inserted. Filters are used to modify the light passing through the specimen, enhancing contrast or reducing glare.

Coaxial Coarse and Fine Adjustment: This refers to the focusing mechanism of the microscope. Coaxial adjustment means that the coarse and fine focusing knobs are positioned concentrically, allowing for easier and more precise focusing.

Fine Division 0.002mm, Coarse Stroke 36mm: These values describe the measurement increments for the fine and coarse focusing knobs. The fine division of 0.002mm indicates the smallest distance by which the focus can be adjusted, allowing for precise focusing. The coarse stroke of 36mm specifies the maximum distance the stage can be moved with the coarse focusing knob.

LED Illumination 1W/LED Adjustment: This indicates that the microscope is equipped with an LED light source for illumination. The 1W value represents the power of the LED, and the "LED Adjustment" likely refers to the ability to adjust the intensity of the illumination.

1PC/carton

Carton size: 35*25*46cm

N.W./G.W.: 6KGS/7KGS
