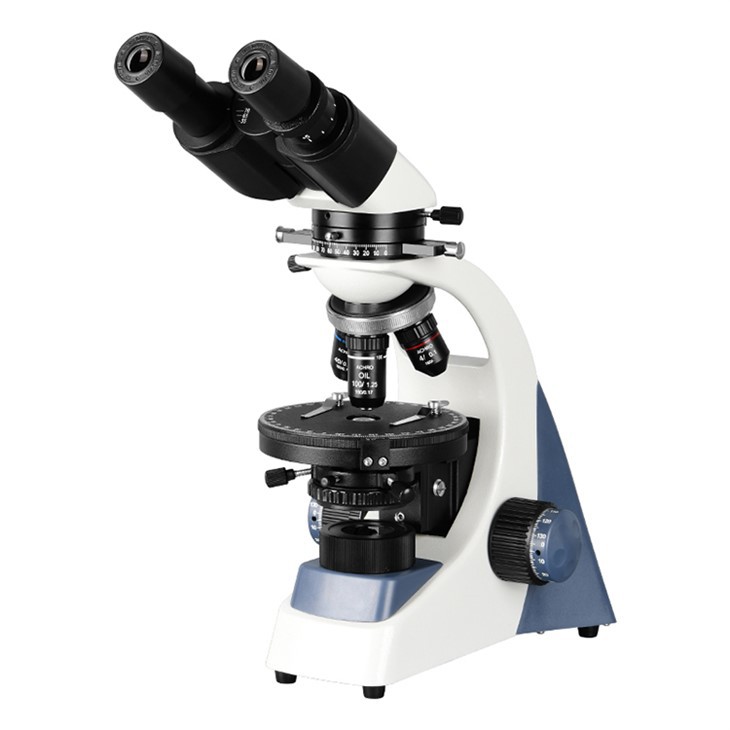

The polarizing microscope is widely used in mineral, polymer, fiber, glass, semiconductor, chemistry and other fields, the use of light polarization characteristics of birefringent substances for research and identification of essential instruments, for the majority of users to do single polarizing observation, orthogonal polarizing observation, cone light observation and so on.

Product Introduction

Specification

geological polarizing microscope

45mm DIN Achromatic Objective:4X,10X,40X(S),100X(S, Oil)
Wide Field Plane-Scope Eyepiece:WF10X,WF16X(Optional);
Total Magnification:40X-1600X
Articulated Free Binocular Head, Interpupillary Distance:55-75mm;30º Inclined,360º Rotatable
Revolving Round Stage:Ø160mm;
360ºRotatable and Graduated 1ºIncrements,Minimum Resolution 6';
Ø2-Ø30mm Iris Diaphragm And Ø32 Filter; ABBE Condenser:N.A.1.25;
Coaxial Coarse And Fine Focusing Adjustable; Mechanism:14mm,Precision:0.01mm;
Rotatable Analyzer with Graduation 0º-90º,Sliding out of Optical Path;
Optical Compensator:λSlip(first-class red),1/4λSlip;
Polarize: On the light collector, 360º Rotatable;
Built-in Adjustable Brightness LED Lamp 1W.
