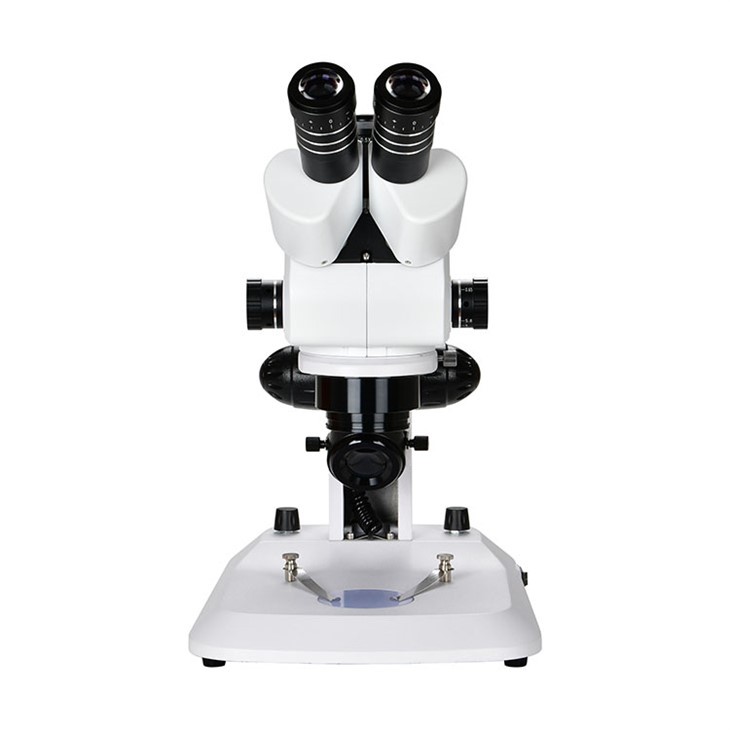

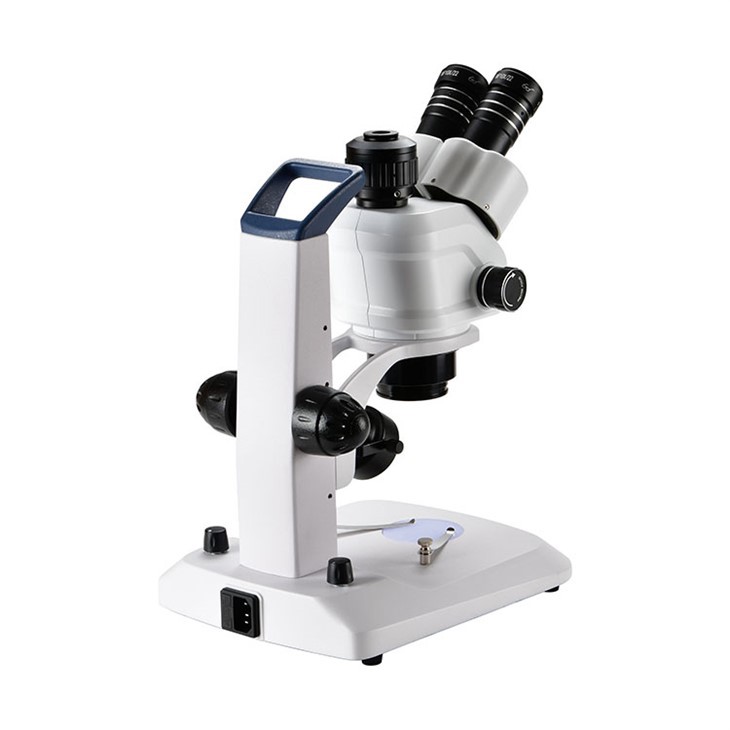

Trinocular Stereo Microscope With 0.5X C-mount
Trinocular Stereo Microscope With 0.5X C-mount
Trinocular Stereo Microscope With 0.5X C-mount
Trinocular Stereo Microscope With 0.5X C-mount
Trinocular Stereo Microscope With 0.5X C-mount

Trinocular Stereo Microscope With 0.5X C-mount

The Zoom stereo microscopes enable examining your specimen with high-performance precision and generate three-dimensional images allowing observation for your highest demanding microscopy applications. These top-level zoom microscopes are perfect for analyzing all kinds of material surfaces or observing and preparing biological samples

Product Introduction

Specification

1.Binocular Head Angle of viewing:45º
2.Eyepieces: wide field WF10X/22
3.Zoom ratio: 1:8.5
4.Objective zoom: 0.65x~.5.5x
5.Total magnification: 6.5x~55x
6.Working distance: 100mm
7.Reflected and transmitted illuminator: 3W LED, 90°adjustable inclined angle range
8.Power supply: 100V~240V, 50Hz/60Hz

9.Equipped with 0.5X C-mount adaptor

Optional accessories:

1. Eyepiece 15X/20X

2. Bottom 7W fluorescent light

3. Auxiliary Lens 0.3X 0.5X 0.75X 2X

Packing Information

Packaging:

1PCS/Carton

Carton Size: 50X26X37cm

W.: 10.5KGS

N.W.: 8.5KGS

Suggested Application

Trinocular stereo microscope with 0.5X C-mount

EYEPIECES:

Supplied with a pair of HWF 10x/22mm eyepieces

HEAD:

Trinocular head with 45-degree inclined tubes. Both eyepieces with Â ± 5 diopter adjustments Interpupillary distance adjustable between 54mm and 75mm.

OBJECTIVES:

Supplied with a 1:8.5 zoom objective with 0.65x to 5.5x magnifications.Working distance 100mm
All optics are anti-fungus treated and anti-reflection coated for maximum light throughput

ILLUMINATION:

The 3 W transmitted and incident LED illuminators with internal power supply 100-240 V operation. Both illuminators can be used simultaneously and the light intensities can be adjusted separately
