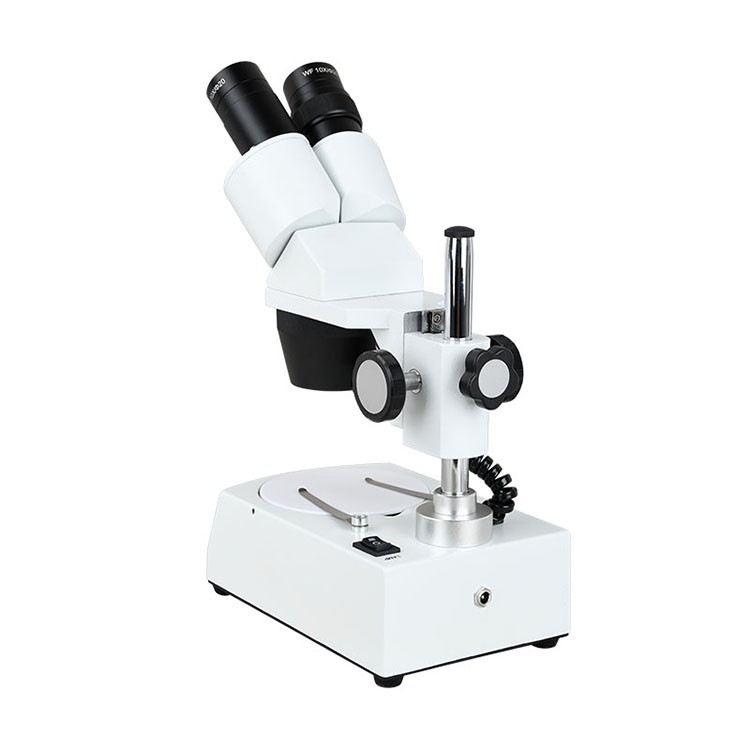

This Binocular Stereo Microscope has a pair of 10x18mm widefield eyepieces, 2x and 4x objectives, upper and lower LED illumination, two stage plates(white and black), and a pillar stand. The WF10x18mm combines with the 2x and 4x objectives to provide 20x and 40x magnification, and a longer working distance for inspecting large-scale specimens that require handling or repair. The optical glass lenses provide sharp images and are fully coated to ensure high-resolution images. Dioptric adjustment accommodates individual eye-strength differences, and eye guards ensure comfortable viewing. A stereo microscope, sometimes called an inspection or dissection microscope, has low magnification and a long working distance that enables users to manipulate the object being inspected.

Product Introduction

Specification

1. Binocular Head Angle of viewing:45º

2. Eyepiece: WF10X/18mm

3. Objective: 2X,4X

4. Working stage:φ90 table

6. Illumination: LED lights top and bottom

7. Power supply: AA rechargeable battery or power adaptor

Packing List

Binocular stereo microscope with forward head and pillar stand
WF10x18mm eyepieces, one pair
Black/white stage plate, 95mm
Frosted stage plate, 95mm
(2) Eye guards
(2) Stage clips
LED bulb
(3) AA batteries, rechargeable
Dust cover
Power cord
Instructions

Packaging:

1PCS/Carton

Carton Size: 50X26X37cm

W.: 8.5KGS

N.W.: 6.5KGS

About this item

Eyepieces: The microscope has 10X widefield eyepieces.
Eyepiece Tube: The microscope has a binocular 45° inclined tube, which means that the eyepieces are inclined at a 45-degree angle for comfortable viewing.
Objectives: The microscope has two objective lenses with magnification powers of 2X and 4X. These lenses are used to magnify the specimen being observed.
Working Stage: The microscope has a φ90 table as the working stage. The table provides a platform for placing and manipulating the specimens.
Illumination: The microscope is equipped with LED lights at the top and bottom. This provides both top and bottom illumination to illuminate the specimen for better visibility.
Power supply： battery or use a plug adaptor

Why Do We Choose This Binocular Stereo Microscope?

1. Magnification range: This microscope has a magnification range of up to 40x if you use 10X eyepieces, which enables viewing of the smallest details.

2. Illumination: This microscope comes with upper and bottom light, making it easier to view circuit boards and work on them in low-light conditions.

3. Flexibility: This is versatile and can be used for a wide range of applications, including biology, geology, electronics, and manufacturing.

4. Rechargeable battery: This microscope comes with a rechargeable battery, so you can use it anywhere without a power cord.
