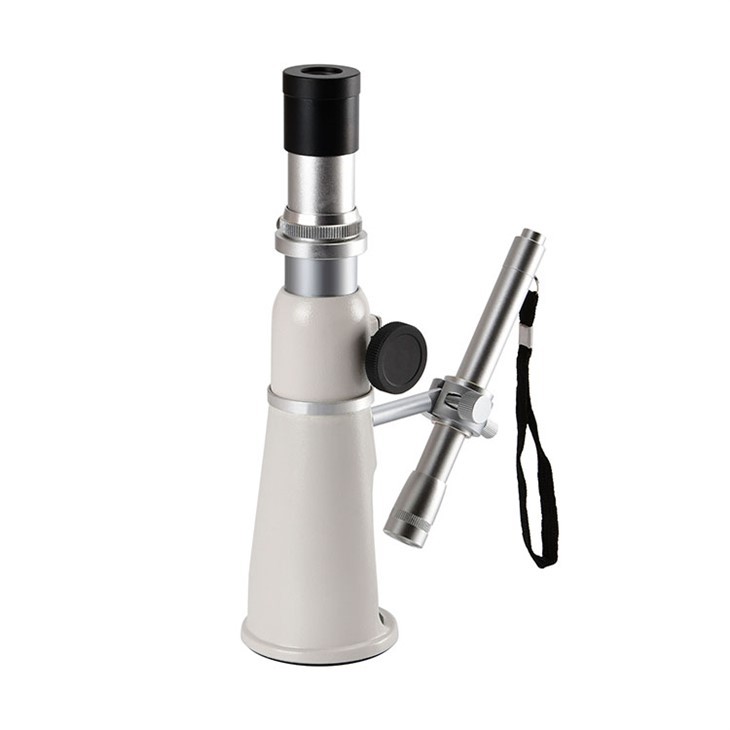

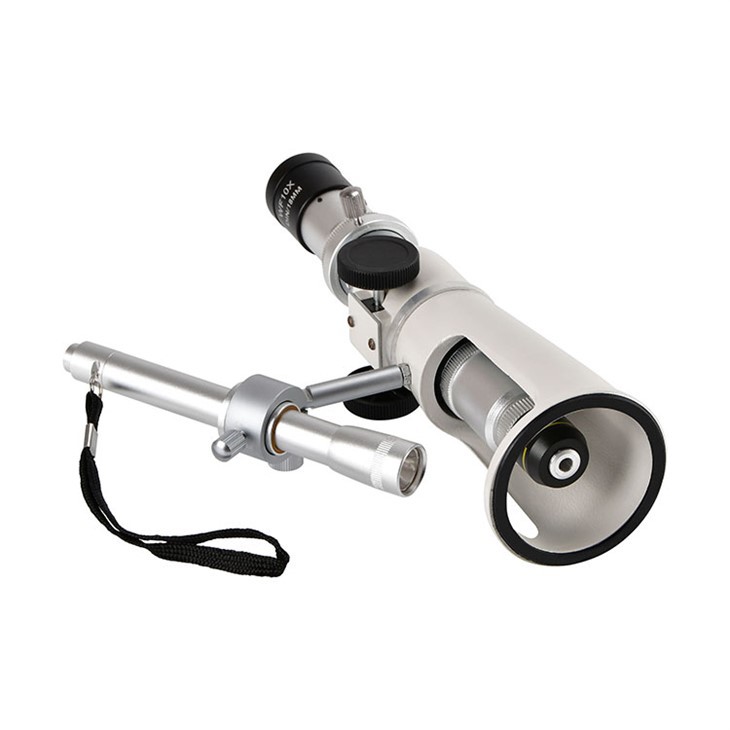

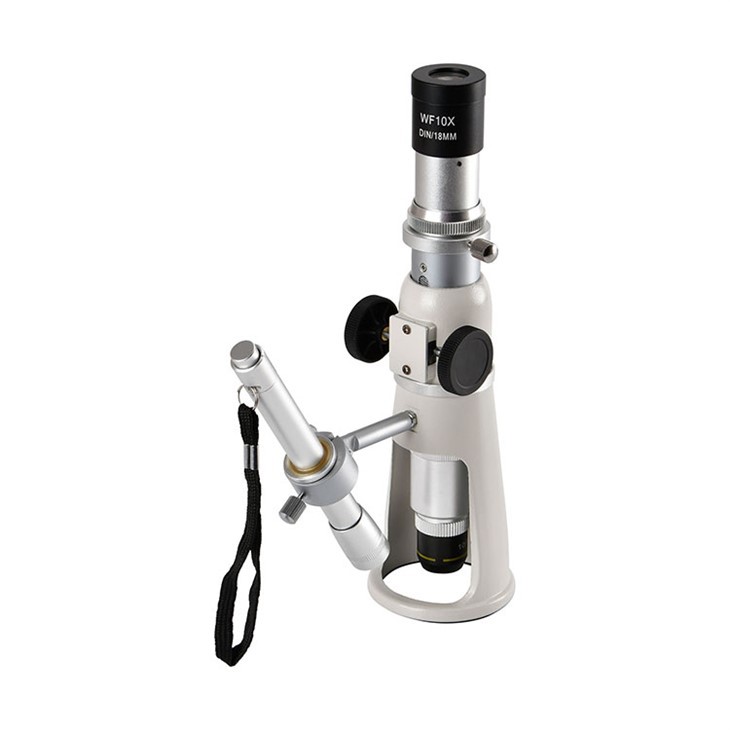

Portable Measuring Microscope
Portable Measuring Microscope
Portable Measuring Microscope
Portable Measuring Microscope

Portable Measuring Microscope

The portable measuring microscope has a wide range of applications, including the inspection and measurement of factory production sites and the observation and research in laboratories. They are particularly useful in the inspection of mechanical manufacturing, paper manufacturing, printing, textile industries, and more. The product is compact, lightweight, visually appealing, and easy to use. It can also be utilized for conducting experiments by students.

Product Introduction

Product Description

1. High precision: Equipped with WF10X eyepiece and crosshair reticule, ensuring accurate measurements up to 0.1mm.
2. Convenient and portable: Compact and lightweight design, with a height of 210mm and weight of 0.65kg, making it easy to carry and use anywhere.
3. Wide field of view: The eyepiece provides a wide viewing field with a diameter of 18mm, allowing for a clear and detailed observation.
4. Sturdy construction: Made with a solid base measuring 63mm in diameter, providing stability and durability during use.
5. Versatile application: Suitable for various purposes such as industrial inspection, educational research, and jewelry examination.
6. Pen lamp for illumination: The microscope comes with a pen lamp that uses a 7# battery (not included), ensuring proper lighting for enhanced viewing.
7. Reliable after-sales service: We provide comprehensive customer support and a warranty period for any potential issues with the product.

Specification

1. Eyepiece: WF10X, crosshair with reticule 0 1mm
2. Focusing Range:30mm
3. Diameter of Viewing field in Eyepiece:18mm
4. Diameter of base:63mm
5. Height of Micriscope:210mm
6. Weight of Micriscope:0.65kg
7.Objective:10X. Magnification: 100X
8. Pen lamp: use 7# battery (Not Included)

Optional objective lens:2X/4X/5X
