Product Specification

Characteristics:

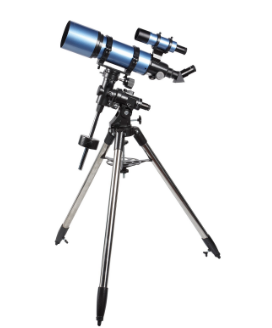

LARGE REFRACTOR TELESCOPE.102mm refractor telescope

Opening: 102mm.

Focal length: 600mm.

Aluminum tripod with accessory tray.

Equatorial assembly IV.

Eyepieces: 1.25″ PL6.5mm, PL25mm.

Power: 212x.

Resolution: 1.37″.

Limiting magnitude: 11.8.

Finder: 9 x 50.

Diagonal prisms: 1.25″ 45º correct image prisms.

White color.

INCLUDES: ALUMINUM CASE.

Product Description

102mm telescope has a 102mm aperture and focal length of 660mm (f/6.5). The heavy Duty EQ mount includes slow-motion control cables that allow for easy and quick viewing across different directions. With the included accessories such as a Red-Dot Viewfinder, 2x Barlow Lens, and (3) Eyepieces that provide varying levels of magnification - this will give you versatility with short and long range distances, the Meade 102mm comes complete with everything you need to view the wonders of the night sky the first time out. When fully assembled, the Meade 102mm weighs approximately 17 lbs.

Furthermore, Meade telescopes are very premium in quality and are perfect for the observer who views both astronomical and terrestrial objects - meaning, you can observe objects in both the sky and on land.

102mm refractor telescope feature six (6) different apertures including: 50mm, 60mm, 70mm, 80mm, 90mm & 102mm. These are the perfect grab-and-go telescopes with their extremely light-weight setup that allows for maximum portability. Whether you're looking to take in the views of mountain tops or looking up into the night sky, Meade's Infinity Telescopes will help you capture amazing views.

Product Parameters

1.Aperture:102mm

2.Focal length: 600mm(f/5.9)

3.Equatorial mount IV

4.Eyepiece:1.25″PL6.5mm PL25mm

5.Power:212x

6.Resolution:1.37 ”

7.Liminting Magnitude:11.8

8.Main Tube Size:D=130mm L=605mm

9.Finderscope:10×30

10.Diagonal prisms:1.25″45°Correct Image Prims

11.Aluminum tripod with accessory tray

12.Packing:Aluminum Case

Installation Steps

Be careful and patient to install the telescope.

Support the tripod firmly, and then attach the telescope body.

After the tube is fixed, install the finder scope (for preliminary search of the target object), then install the eyepiece (choose one from the two).

After find out the big goal, then focus with different eyepieces.

When use 1.5X Barlow lens, installed Barlow lens first, and then install the eyepiece. ( When install the Barlow lens, we need to move out the lid on the installation device of eyepiece.).

The astronomical telescope suits the beginners and children.

Product Features

Aperture: 102mm (4”) Refracting Telescope with f/6.5 Focal Length
Features a precision Equatorial Mount with slow-motion controls, making it easy to track celestial objects as they move across the night sky.
Comes with 3 Eyepieces that provide low, medium and high powered magnification for viewing a wide range of objects (Moon, planets, or land). 2x Barlow Lens also included to double magnification - essentially like having 6 different eyepieces!
102mm refractor telescope
